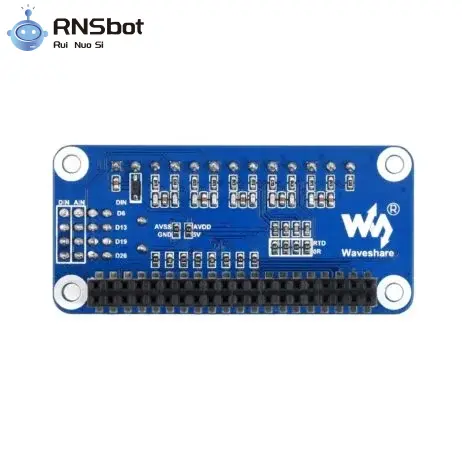

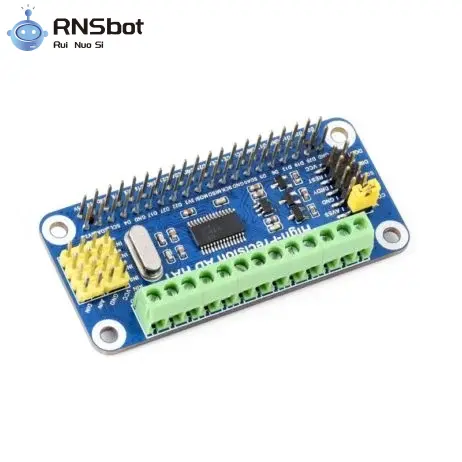

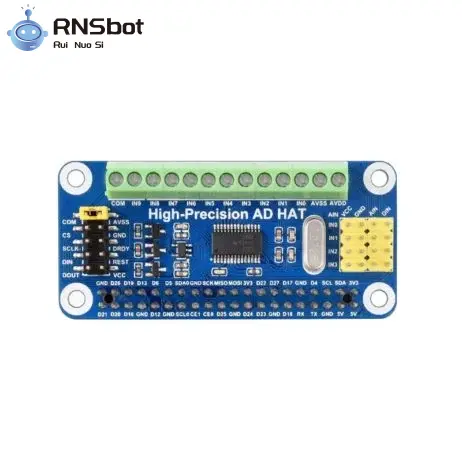

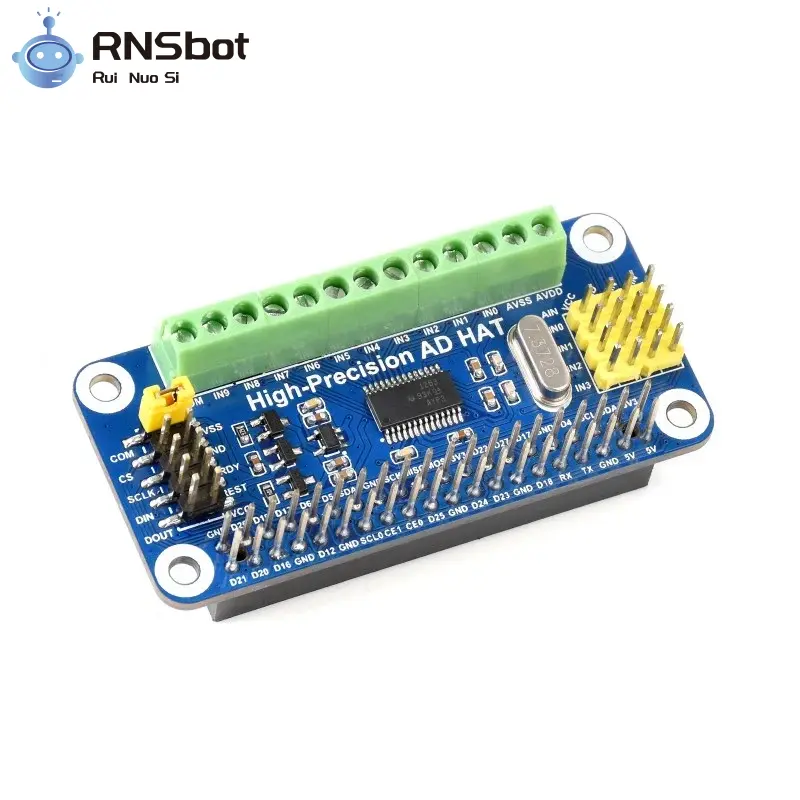

Waveshare High-Precision AD HAT For Raspberry Pi ADS1263 10-Ch 32-Bit ADC

Waveshare High-Precision AD HAT For Raspberry Pi ADS1263 10-Ch 32-Bit ADC. Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules .Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface .Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi .Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor.

Features

• Adopts ADS1263 chip, low noise, low temperature drift
• 10-ch 32-bit high precision ADC (5-ch differential input)
• 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC
• IDAC, 2.5V internal reference voltage
• internal ADC test signal

Useful link:

For Software setup, please follow this tutorial.
