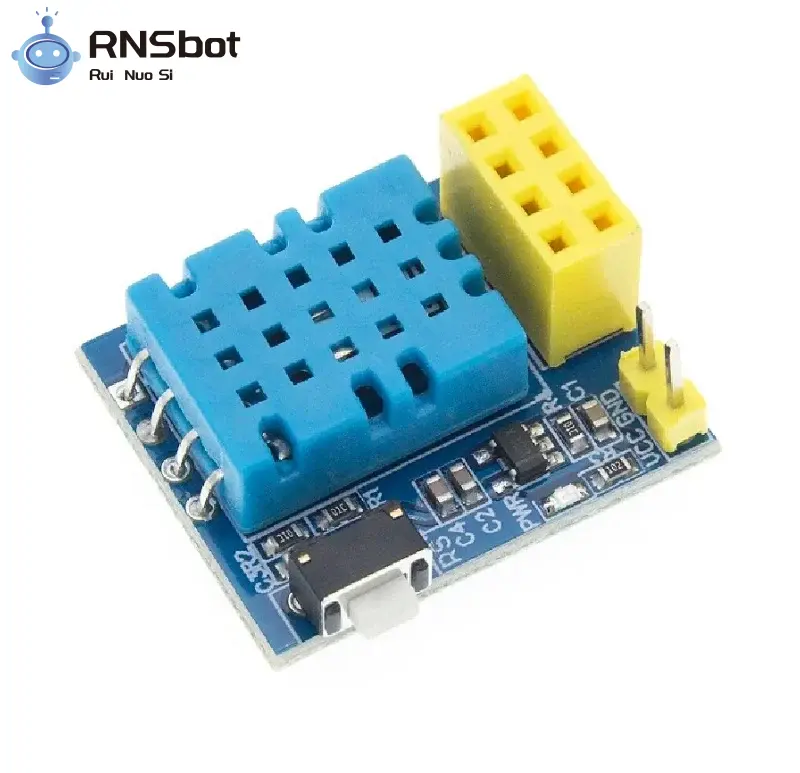

This product requires the user to burn the download program himself, and the problem is caused by burn-in damage, etc, please pay attention to beginners. This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.
This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.
Applications
- 1. Power supply: 3.7V-12V DC power supply is connected to VCC GND (2.54mm pin header)
- 2. Download the program to ESP-01S (this connection does not include this wireless module)
- 3. Insert the ESP-01/ESP-01S (this connection does not include this wireless module) into the 2*4 Pin female (in the direction of the arrow)
Features
- ESP8266 ESP-01/ESP-01S module compatible
- Integrated DHT11 sensor for temperature and humidity monitoring
- WiFi connectivity for remote data transmission
- Compact and low-cost design
- GPIO pins for additional customization
- Ideal for IoT and home automation projects
